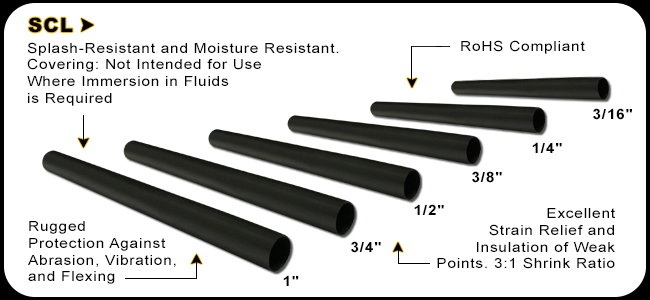

| SCL Technical Data |
| |
|
|
| |
 |
|
| |
|
|
| |
Semirigid,
Encapsulant-Lined,
Polyolefin Tubing |
|
| |
| Applications: Encapsulates components,
splices, and terminations
where moisture resistance
and mechanical protection
are required. Encapsulant
melts and flows to fill
surface irregularities of the
substrate. While still hot,
the tubing can be blocked
to form a wire breakout. |
|
|
| |
|
|
| |
| Installation: Minimum shrink
temperature: 125°C [257°F].
Minimum full recovery
temperature: 135°C [275°F]. |
|
|
| |
|
|
| |
| Operating Temperature Range: -55°C to 110°C
[-67°F to 230°F]. |
|
|
| |
|
|
| |
| Specifications / Approvals |
| Series |
| UL** |
 |
|
Military |
Raychem |
| SCL |
E85381
600 V, 125°C |
AMS-DTL-23053/4*,
Class 1
|
RT-1301 |
| *Formerly MIL-I-23053/4 and MIL-DTL-23053/4. |
|
|
| |
|
|
| |
| Product Dimensions |
| |
|
Inside Diameter |
Recovered Wall Thickness** |
| Size |
Additional
Standard
Color |
Minimum
Expanded
as Supplied |
Maximum
Recovered
After Heating |
Total Wall
After
Heating |
Meltable Wall
After Heating
(Nominal) |
| 1/8 |
Brown |
3.2 [0.125] |
0.6 [0.023] |
0.96 ± 0.15 [0.038 ± 0.006] |
0.51 [0.020] |
| 3/16 |
Gray |
4.8 [0.187] |
1.5 [0.060] |
1.09 ± 0.15 [0.043 ± 0.006] |
0.64 [0.025] |
| 1/4 |
White |
6.4 [0.250] |
2.0 [0.080] |
1.19 ± 0.15 [0.047 ± 0.006] |
0.69 [0.027] |
| 3/8 |
Red |
9.5 [0.375] |
3.4 [0.135] |
1.27 ± 0.18 [0.050 ± 0.007] |
0.76 [0.030] |
| 1/2 |
Blue |
12.7 [0.500] |
5.0 [0.195] |
1.39 ± 0.18 [0.055 ± 0.007] |
0.89 [0.035] |
| 3/4 |
Yellow |
19.1 [0.750] |
8.0 [0.313] |
1.65 ± 0.18 [0.065 ± 0.007] |
1.02 [0.040] |
| 1 |
N/A |
25.4 [1.000] |
10.2 [0.400] |
1.90 ± 0.18 [0.075 ± 0.007] |
1.02 [0.040] |
| **Wall thickness will be less if tubing recovery is restricted during shrinkage. |
|
|
| |
|
|
| |
NOTE: The information contained in this data sheet is based on information supplied by the manufacturer and is believed to be the most recent and reliable information available. BMRS WIRED is not responsible nor liable for the information and test results received by the manufacturer of these products. |
|
| |
|
|
